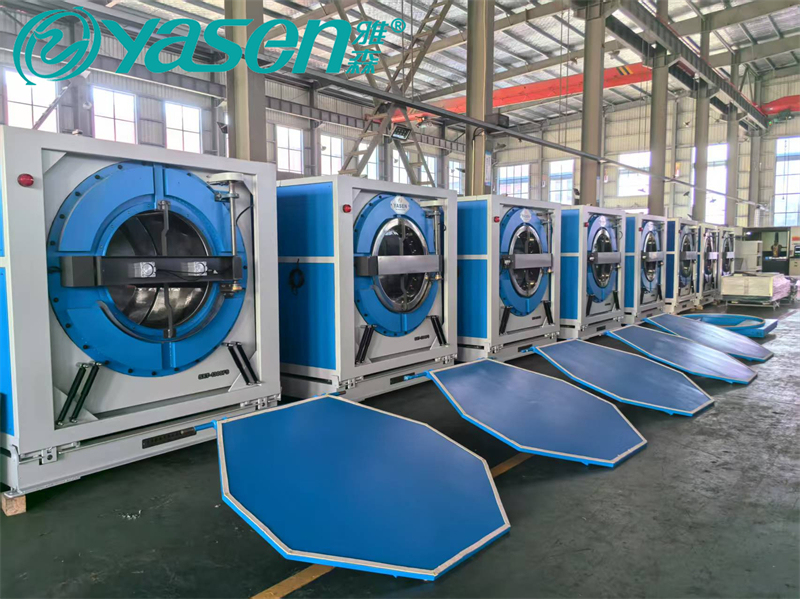

Customizable Washer Extractor System for Automated Washing Solutions

Customizable Washer Extractor System for Automated Washing Solutions

customizable washer extractor system

automated washing solutions washer extractor

washer extractor with warranty

Lugar de origen:

Shanghai, China

Nombre de la marca:

YASEN

Certificación:

CE,ISO9001:2008

Número de modelo:

El IWS

Éntrenos en contacto con
Solicitar una cita
Detalles del producto
Característica:
Personalizable
Garantía:
1 año
Material:
acero inoxidable
Proceso de limpieza:
Limpieza con agua caliente
Tipo de limpieza:
Limpio-En-lugar (CIP)
Función:
Lavado Extracción
Utilizado para:
Hotel Hospitality Factory
Calefacción:
Calefacción de vapor
Condiciones de pago y envío
Cantidad de orden mínima
1 por ciento
Precio
$238,000.00 - $396,000.00/sets
Detalles de empaquetado
Envases de madera para extractor de lavadoras
Capacidad de la fuente
100 juegos/juegos por mes de lavadoras comerciales
Descripción del producto

This customizable washer extractor system is designed for high-volume laundry operations requiring automated workflow integration. The system features modular components and programmable logic controllers to accommodate specific load capacities, fabric types, and processing sequences. It supports integration with automated chemical injection, material handling, and data management systems. The design focuses on optimizing water and energy efficiency while maintaining consistent wash quality and operational reliability.

Technical Parameters
Technical Parameter Unit SXT-1300FS SXT-1500FS
Rated Capacity kg 130 130
Front Tilt Angle ° (Degree) 25° 21°
Rear Tilt Angle ° (Degree) 25° 26°
Cylinder Diameter mm 1300 1470
Cylinder Depth mm 980 880
Washing Speed rpm 35 (Variable) 32 (Variable)
High-Speed Extraction Speed rpm 650 (Variable) 610 (Variable)
Power Supply V/Ph/Hz 380/3/50 380/3/50
Main Motor Power kW 11 15
Heating Method
Steam Steam
Steam Pipe Diameter inch G1″ G1.5″
Steam Pressure MPa 0.4-0.6 0.4-0.6
Cold/Hot Water Pipe Diameter inch G2″ G2″
Cold/Hot Water Pressure MPa 0.3-0.5 0.3-0.5
Drain Outlet Diameter mm Φ127*2 Φ140*2
Compressed Air Pressure MPa 0.6-0.8 0.6-0.8
Noise Level dB(A) ≤75 ≤75
Net Weight kg 4500 6800
Overall Dimensions (W*D*H) mm 2070*2400*2085 2520*2380*2612
Application Scenarios:
  • Hospitality Linen Processing
  • Healthcare Textile Services
  • Uniform Rental Operations
  • Food & Beverage Laundry
  • Correctional Facility Laundry
  • Sports & Fitness Club Towel Services
Q&A: Customizable Washer Extractor System

Q: What is the core function of a Customizable Washer Extractor System?

A: It provides automated, high-volume washing and moisture extraction, tailored to specific operational requirements through programmable controls and modular components.

Q: How does the Customizable Washer Extractor System integrate with existing laundry workflows?

A: It is engineered for compatibility with automated material handling, chemical dispensing, and data management systems via standardized interfaces and programmable logic controllers (PLCs).

Q: What aspects of the Customizable Washer Extractor System can be adapted for different facilities?

A: Key customizable aspects include load capacity (e.g., 50-200 lb models), cycle programming for various soil levels and fabric types, and optional features like reverse-axis tilting or specialized rinse configurations.

Q: What are the primary efficiency benefits of implementing a Customizable Washer Extractor System?

A: The system is designed to optimize utility consumption, specifically reducing water usage per pound of laundry and lowering thermal energy requirements through advanced heat recovery and rinse cycle management.

Q: What level of operational data can be monitored with a Customizable Washer Extractor System?

A: The system typically provides data on cycle completion, utility consumption (water, gas, electricity), chemical usage, and production throughput for performance analysis and reporting.
